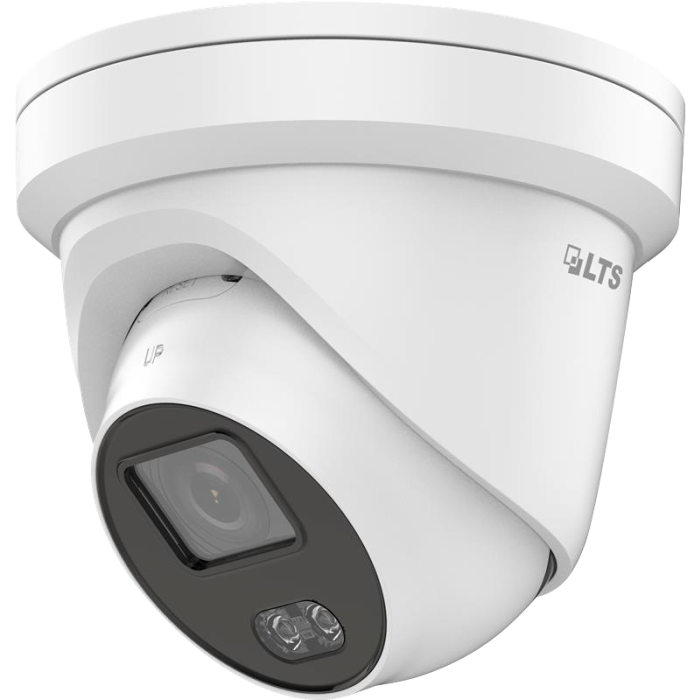

Platinum 4 MP Color 24/7 Fixed Lens Turret IP Camera

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Min. Illumination

0.0014 @ f 1.0 (1/30 sec, AGC on)
0.002 @ f 1.2 (1/30 sec, AGC on)
0 Lux with LED on

Shutter Speed

1/3 to 1/100,000 sec.

Slow Shutter

Yes

Focal length

4 mm

Focus

Fixed

Aperture

f 1.0

FOV

6 mm: Horizontal: 54°, vertical: 29°, diagonal: 63°

Lens Mount

M16

Auto-Iris

No

DNR

3D DNR

Wide Dynamic Range

120 dB

3-Axis Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Compression Standard

Video Compression

Main stream: H.265 / H.264
Sub stream: H.265 / H.264 / MJPEG
Third stream: H.265/H.264

H.264 Type

Baseline Profile / Main Profile / High Profile

H.264+

Main stream

H.265 Type

Main Profile

H.265+

Main stream

Video Bit Rate

32 Kbps to 8 Mbps


Max. Resolution

2560 × 1440

Main Stream

50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 24fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third stream

50Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240)

60Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240)

Image Enhancement

BLC / 3D DNR / HLC / Defog

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Region of Interest (ROI)

No

Network

Network Storage

Supports MicroSD / SDHC / SDXC cards (up to 128 GB) local storage, NAS (NFS, SMB / CIFS), ANR

Alarm Triggers

Motion detection, video tampering detection, network disconnect, IP address conflict, illegal login, HDD full, HDD error

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

General Functions

One-key reset, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User / Host

Up to 32 users

3 levels: Administrator, Operator and User

Web Browser

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

Communication Interface

1 x RJ45 10/100 Mbps self-adaptive Ethernet port

On-board Storage

Built-in MicroSD / SDHC / SDXC slot, up to 128 GB

Reset Button

Yes

SVC

H.265 encoding and H.264 encoding support

Smart Feature-set

Behavior Analysis

Line crossing detection, intrusion detection

General

Operating Conditions

-22° to 140° F (-30° to 60° C), humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

Power Consumption

12 VDC, 0.5 A, max: 6 W

PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max: 7.5 W

Visible Light Range

Warm white LEDs (3,000 K), up to 98 ft (30 m)

Protection Rating

IP67

Materials

Camera body:
Front cover: Plastic
Back cover: Metal
Bottom base: Plastic

Dimensions

Camera: Φ5.1 × 4.1″  (Φ130 × 103.6 mm)

Weight

Camera: 1.1 lb  (500 g)
