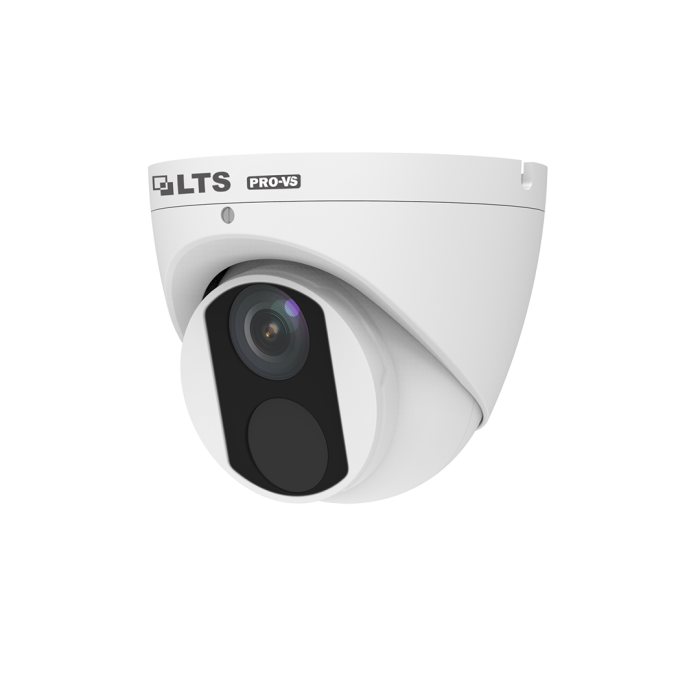

VSIP3182W-28
|
|
Camera
|
|
Sensor
|
1/3", 8.0 megapixel, progressive scan, CMOS
|
|
Lens
|
2.8mm@F2.0
|
|
|
DORI Distance
|
Lens
|
Detect(m)
|
Observe(m)
|
Recognize(m)
|
Identify(m)
|
|
|
2.8mm
|
84
|
33.6
|
16.8
|
8.4
|
|
|
4.0mm
|
120
|
48
|
24
|
12
|
|
|
Angle of view(H)
|
112.7°
|
|
|
Angle of View (V)
|
60.1°
|
|
|
Angle of View (O)
|
146.5°
|
|
|
Shutter
|
Auto/Manual, 1~1/100000 s
|
|
|
Adjustment angle
|
Pan: 0°~360°
|
Tilt: 0°~80°
|
Rotate:0°~360°
|
|
|
Min. Illumination
|
Colour: 0.05 Lux (2.0, AGC ON)
0 Lux with IR
|
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
Digital noise reduction
|
2D/3D DNR
|
|
S/N
|
>56dB
|
|
IR Range
|
Up to 30m (98 ft) IR range
|
|
Wavelength
|
850nm
|
|
IR On/Off Control
|
Auto/Manual
|
|
Defog
|
Digital Defog
|
|
WDR
|
120dB
|
|
Video
|
|
Video Compression
|
Ultra 265, H.265, H.264, MJPEG
|
|
H.264 code profile
|
Baseline Profile, Main Profile
|
|
Frame Rate
|
Main Stream:8MP (3840*2160): Max. 20 fps;5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080): Max. 30 fps
Sub Stream:720P (1280*720): Max. 20 fps
Third Stream:4CIF (704*576): Max. 20 fps
|
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
|
OSD
|
Up to 4 OSDs
|
|
Privacy Mask
|
Up to 4 areas
|
|
ROI
|
Up to 2 areas
|
|
Motion Detection
|
Up to 4 areas
|
|
|
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
|
Digital noise reduction
|
2D/3D DNR
|
|
Smart IR
|
Support
|
|
Flip
|
Normal/Vertical/Horizontal/180°
|
|
Dewarping
|
NA
|
|
HLC
|
Supported
|
|
BLC
|
Supported
|
|
Smart
|
|
Behavior Detection
|
Human Body Detection
|
|
Network
|
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS
|
|
Compatible Integration
|
ONVIF (Profile S+ Profile T), API
|
|
Client
|
LTS PRO-VS Station
|
|
Web Browser
|
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
|
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
|
|
Interface
|
|
Network
|
10/100M Base-TX Ethernet
|
|
Certifications
|
|
Certifications
|
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
|
|
General
|
|
Power
|
12 V DC±25%, PoE (IEEE802.3 af)
|
|
Power consumption: Max 5W
|
|
Dimensions (Ø x H)
|
Φ118×96mm (Φ4.6”×3.8”)
|
|
Net Weight
|
0.33kg (0.73lb)
|
|
Material
|
Front cover： metal
Rear cover：plastic
Bracket：plastic
Bottom plate：metal
|
|
Working Environment
|
-30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
|
|
Strorage Environment
|
-30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
|
|
Surge Protection
|
2KV
|
|
Ingress Protection
|
IP67
|
