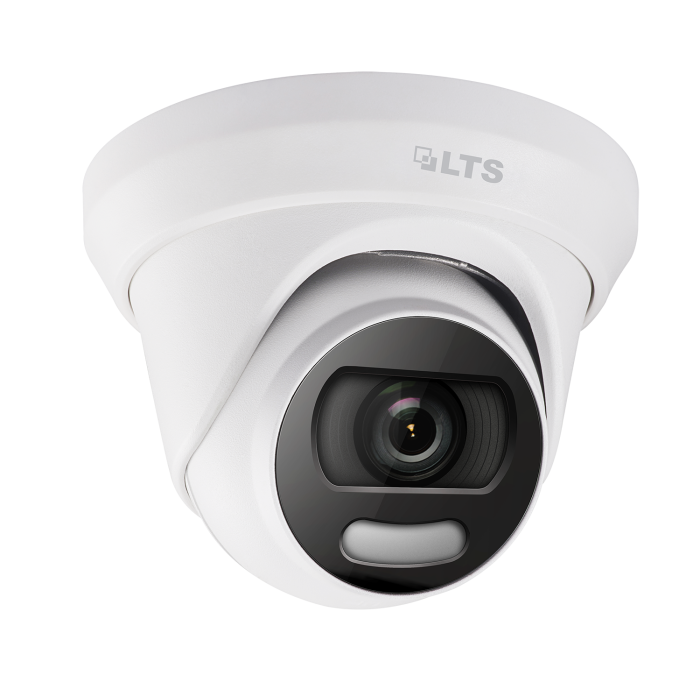

Platinum 5 MP Color 24/7 Fixed Lens HD-TVI Turret Camera

Call for Price
In stock
SKU
LTCMHT1752W-28CF
In Stock
  • 5 MP, 2560 x 1944 resolution
  • Color imaging 24/7
  • 2.8 mm fixed lens
  • 0.0005 Lux @ f1.0
  • Up to 66 ft(20 m) white light distance
  • 3D DNR, true WDR
  • 4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
  • IP67
  • OSD menu via UTC technology with Platinum DVR
More Information
Specifications

Camera

Image Sensor

5 MP CMOS

Resolution

2560 (H) × 1944 (V)



Frame Rate

5 MP @ 20 fps

Min. illumination

0.0005 Lux @ (f1.0, AGC on), 0 Lux with supplemental light

Shutter Speeds

PAL: 1/25 to 1/50, 000 sec.

NTSC: 1/30 to 1/50, 000 sec.

Slow Shutter

Max. 16 times

Lens

2.8 mm fixed lens

Field of View

2.8 mm, horizontal: 104°, vertical: 54°, diagonal: 126°

Lens Mount

M16

Day & Night

Color

Wide Dynamic Range (WDR)

120 dB

Angle Adjustment

Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°

Menu

Image Mode

STD / HIGH SAT

AGC

Yes

White Balance

Auto / Manual

HLC

Yes

Backlight Compensation (BLC)

Yes

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable areas

WDR

Yes

Functions

Brightness, Sharpness, 3D DNR, Mirror, Smart light

Interface

Video Output

Switchable among TVI / AHD / CVI / CVBS

General

Operating Conditions

-40° to 140° F (-40° to 60° C), humidity: 90% or less (non-condensing)



Power Supply

12 VDC ± 25%

*LTS recommends using only one power adapter for each camera.

Power Consumption

Max. 3 W

Protection Level

IP67

Material

Main Body: Metal Mounting Base: Plastic

Supplemental Light

White; range up to 66 ft (20 m)

Dimensions

Ø 4.32 × 3.37"  (Ø 109.82 × 85.56 mm)

Weight

Approx. 0.74 lb  (336 g)

Video
SKU LTCMHT1752W-28CF
Camera Technology HD-TVI
Camera Series Platinum Series
Camera Housing Turret
Camera Resolution 5.0MP
