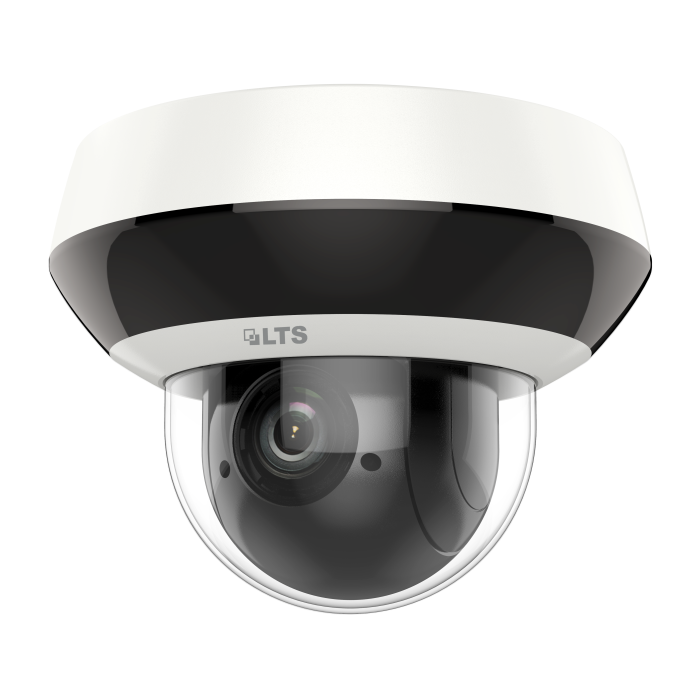

Platinum 2MP 4X Network IR PTZ Camera

Details

  • 2MP High Definition
  • 1920X1080P@30fps
  • 2.8-12mm Lens
  • 4x Optical Zoom
  • 120 dB WDR, 3D DNR, HLC, BLC, Smart IR
  • Up to 66ft(20 m) IR distance
  • 12 VDC & PoE
  • Support H.265+/H.265 video compression
  • 2.5"(Φ)

Videos

Details

Specifications

Camera Series Platinum Series
Camera Resolution 2.1MP / 1080P
Camera Technology IP / Network
Camera Housing PTZ
Featured Product No
Specifications
Camera
Image Sensor  1/3" Progressive Scan CMOS
Effective Pixel 1920(H) ×1080(V)
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC Auto / Manual
WDR 120dB
Digital Noise Reduction 3D DNR
Backlight compensation BLC
Shutter Speed 1 ~ 1/30,000s
Day & Night IR Cut Filter
Digital zoom 16X
Focus Mode Auto / Semiautomatic / Manual
Privacy Mask 24 programmable privacy masks
Lens
Focal Length 2.8 mm to 12 mm, 4× optical
Zoom Speed Approx. 2 s (optical lens, wide-tele)
Angle of View

Horizontal field of view: 109° to 34° (Wide-Tele)
Vertical field of view: 57° to 19° (Wide-Tele)
Diagonal field of view: 135° to 39° (Wide-Tele)

Min. Working Distance 10 ~1500mm (Wide-Tele)
Aperture Range F1.6 ~ F2.7
Pan and Tilt
Pan / Tilt Range Pan: 0° to 330°; Tilt: 0° ~ 90°
Pan / Tilt Speed Pan manual speed: 0.1° ~ 100°/s, Pan preset speed: 100°/s
Tilt manual speed: 0.1° ~ 100°/s, Tilt preset speed: 100°/s
Proportional Zoom Support
Number of Preset 300
Power-off Memory Support
Local Video and Audio
Network Interface 1 RJ45 10 M/100 M Ethernet, PoE
Audio input / putput 1-ch audio input and 1-ch audio output
Network
Max. Image Resolution 1920×1080
Frame Rate

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Image Compression Main Stream: H.265+/H.265/H.264+/H.264
ROI encoding Main stream, sub-stream, and third stream respectively support two fixed areas.
SVC Support
Audio Compression G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View Up to 20
API Open-ended, support ONVIF, ISAPI, and CGI, support Third-Party Management Platform
SD Memory Card Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
User/Host Level Up to 32 users, 3 levels: Administrator, Operator and Use
Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
IR
IR Distance Up to 66ft(20 m)
Smart IR Support
General
Working Temperature
/Humidity
-4°F ~140°F (-20°C ~ 60°C)
90% or less
Power Supply 12 VDC & PoE, Max.: 12 W (Max. 3.9 W for IR)
Protection Level

IP66 Standard;

TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimension

Φ 5.15" × 4.00"(Φ 130.7 mm × 101.7 mm )

Weight Approx. 1.17Ibs (0.53Kg)
