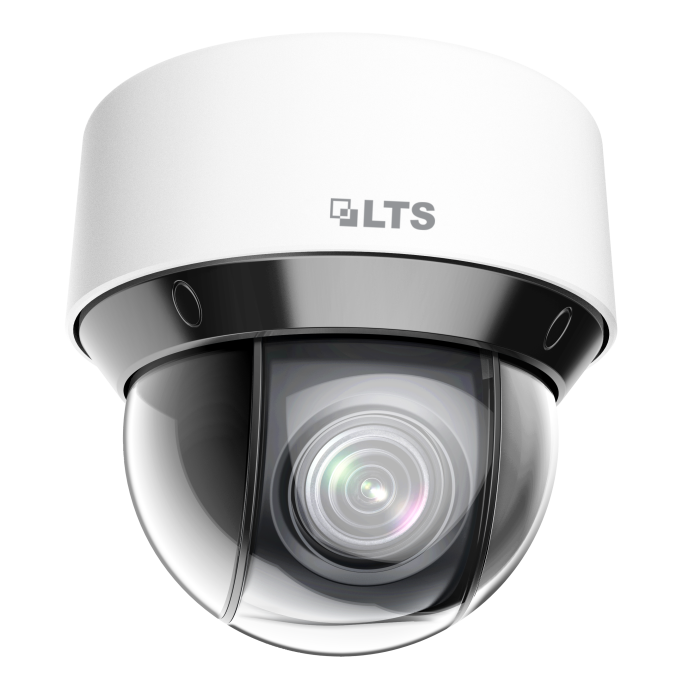

Platinum 4MP 25X Network IR PTZ Camera

Details



  • 4MP High Definition
  • 1/2.5” CMOS
  • 2560X1440P@30fps
  • 4.8-120mm Lens
  • 25x Optical Zoom
  • 120 dB WDR, 3D DNR, HLC, BLC, Smart IR
  • Up to 164ft(50 m) IR distance
  • 12 VDC & PoE+ (802.3 at, class4)
  • Support H.265+/H.265 video compression
  • 4"(Φ)

Videos

Specifications

Camera Series Platinum Series
Camera Resolution 4.0MP
Camera Technology IP / Network
Camera Housing PTZ
Featured Product No
Specifications
Camera
Image Sensor  1/2.5" Progressive Scan CMOS
Effective Pixel 2560(H) ×1440(V)
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC Auto / Manual
WDR 120dB
Digital Noise Reduction 3D DNR
Backlight compensation BLC
Shutter Speed 1 ~ 1/30,000s
Day & Night IR Cut Filter
Digital zoom 16X
Focus Mode Auto / Semiautomatic / Manual
Privacy Mask 24 programmable privacy masks
Lens
Focal Length 4.8 mm to 120 mm, 25× optical
Zoom Speed Approx. 3.2 s (optical lens, wide-tele)
Angle of View

Horizontal field of view: 57.6° to 2.5° (wide-tele)
Vertical field of view: 34.4° to 1.4° (wide-tele)
Diagonal field of view: 64.5° to 2.9° (wide-tele)

Min. Working Distance 10 ~1500mm (Wide-Tele)
Aperture Range F1.6 ~ F3.5
Pan and Tilt
Pan / Tilt Range Pan: 360° endless; Tilt: -5° ~ 90° (Auto Flip )
Pan / Tilt Speed Pan manual speed: 0.1° ~ 300°/s, Pan preset speed: 350°/s
Tilt manual speed: 0.1° ~ 160°/s, Tilt preset speed: 200°/s
Proportional Zoom Support
Number of Preset 300
Patrol Scan 8 patrols, up to 32 presets per patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Support
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display Support
Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
Preset freezing Support
Local Video and Audio
Network Interface 1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3 at, class4)
Audio input / putput 1-ch audio input and 1-ch audio output
Alarm Interface 2-ch alarm input and 2-ch alarm input
Network
Max. Image Resolution 2560×1440
Frame Rate

50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720)

Image Compression Main Stream: H.265+/H.265/H.264+/H.264
ROI encoding Main stream, sub-stream, and third stream respectively support two fixed areas.
SVC Support
Audio Compression G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View Up to 20
API Open-ended, support ONVIF, ISAPI, and CGI, support Third-Party Management Platform
SD Memory Card Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
User/Host Level Up to 32 users, 3 levels: Administrator, Operator and Use
Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
IR
IR Distance Up to 164ft(50 m)
IR Intensity Automatically adjusted, depending on the zoom ratio
General
Working Temperature
/Humidity
-22°F ~149°F (-30°C ~ 65°C)
90% or less
Power Supply 12 VDC and PoE+ (802.3 at, class4), Max.: 18 W (IR light 5 W Max.)
Protection Level IP66 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension

Φ 6.65" × 6.34"(Φ 169 mm × 161 mm )

Weight Approx. 5.40Ibs (2.45Kg)
