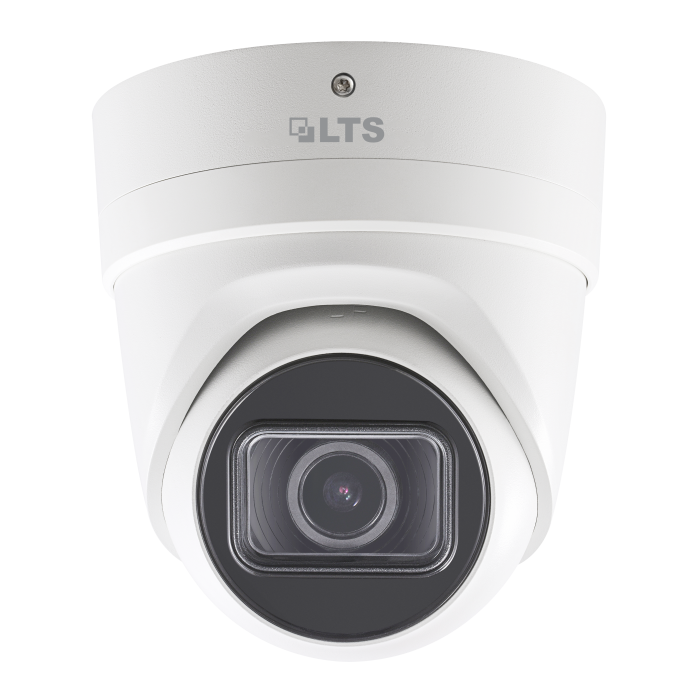

Platinum Varifocal Turret 4K IP Camera 8MP - 4K

Call for Price
Out of stock
SKU
CMIP3883W-SZ
Out of Stock
3yr  ovnif  ul listed
  • 8MP/4K High Definition
  • 3840x2160@20fps
  • 2.8-12mm Varifocal Lens
  • 3D DNR, DWDR, BLC, VCA
  • Matrix IR LED up to 100ft
  • H.265, H.265+, H.264, H.264+ Ready
  • IP67
  • DC 12V
  • PoE
  • UL Listed
More Information
Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8-12mm@F1.4, Motorized Lens, Angle of view:120°- 36°
Lens Mount Φ14
Day & Night IR cut filter
DNR 3D DNR
Wide Dynamic Range DWDR
Angle Adjustment Pan:0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Compression Standard
Video Compression

Main stream: H.265+/H.265/H.264 Zip+/H.264
Sub stream: H.265+/H.265/H.264 Zip+/H.264/MJPEG
Third stream: H.265+/H.265/H.264 Zip+/H.264

H.264 Type Main / High Profile
H.265 Type Main Profile
Video Bit Rate 256 Kbps ~ 16 Mbps
Dual Stream Support
Max. Resolution 3840 × 2160
Main Stream 60Hz: 20fps (2560×1920), 30fps (2048x1536), 30fps(1920×1080), 30fps(1280×720)
50Hz: 20fps (2560×1920), 25fps (2048x1536), 25fps(1920×1080), 25fps(1280×720)
Sub Stream 60Hz: 30fps (352×240, 640x480) 50Hz: 25fps (352×288, 640x480)
Others Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion Detection, VideoTampering, Network Disconnected, IP Address Conflicted, Illegal Login, HDD Full, HDD error, alarm input, alarm output
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General One key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Reset Support
General
Working Temperature
/Humidity
-22 °F ~ 140 °F (-30 °C ~ 60 °C)
Humidity 95% or less (non-condensing)
Power Supply DC 12V ± 10%, PoE (802.3af)
Power Consumption Max. 5.5W (Max. 7.5W with ICR on)
IR Range Approx. 100ft (30 meters)
Weather Proof Ratings IP67
Impact Protection IK10
Dimensions Φ 5 .35” × 5.73”(Φ 135.8 × 145.5 mm)
Weight 2.34lbs (1060g)
Video
SKU CMIP3883W-SZ
Camera Technology IP / Network
Camera Series Platinum Series
Camera Housing Turret
Camera Resolution 4K
