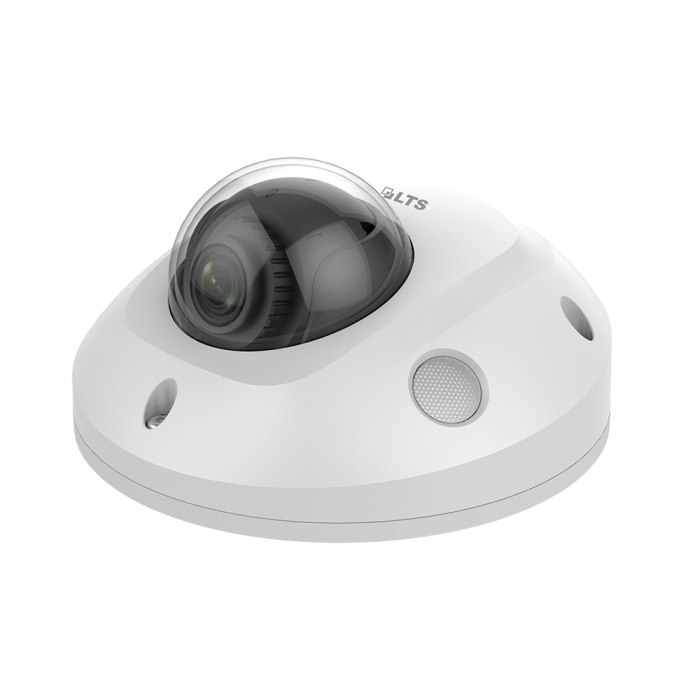

Platinum 4 MP Mini Dome with Wi-Fi

Be the first to review this product

Call for Price

Out of stock

SKU

LTCMIP3142NW-28SWIFI

In Stock

4 MP IP-P Mini Dome with Wi-Fi, 2.8 mm fixed lens, Matrix IR, True WDR, MSDslot, Audio & Alarm I/O, IK08, IP67

2.8 mm lens
Matrix IR
True WDR
MicroSD slot
Audio & alarm channels I/O
IK08
IP67
DC / PoE power options

Show more Show less

Details

2.8 mm lens
Matrix IR
True WDR
MicroSD slot
Audio & alarm channels I/O
IK08
IP67
DC / PoE power options

Specs

More Information

Specifications

Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.018 lux @ (f 1.6, AGC on), 0 lux with IR
Shutter Speed	1/3 to 1/100,000 sec.
Lens	2.8 mm @ f 2.0
Lens	2048 × 1536:Angle of view: 86° 1920 × 1080:Angle of view: 98.5°
Lens Mount	M12
Day & Night	IR Cut Filter
Digital Noise Reduction	3D DNR
Wide Dynamic Range	120dB
3-Axis Adjustment	Pan: -30°to +30°, tilt: 0°to 75°, rotate: 0°to 360°
Compression Standard
Video Compression	Main stream: H.265 / H.264 Sub stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264
H.264 compression profile	Main Profile / High Profile
Bit Rate	32 Kbps ~ 16 Mbps
Audio compression	G722.1 / G711 ulaw / G711 alaw / G726 / MP2L2 / PCM
Audio bit rates	64 Kbps (G.711) / 16 Kbps (G.726) / 32-128 Kbps (MP2L2)
Imaging
Max. Resolution	2688 × 1520
Frame Rates	60 Hz: 20 fps (2048 x 1536), 30 fps (1920 × 1080), 30 fps (1280 x 720) 50 Hz: 20 fps (2048 x 1536), 25 fps (1920 × 1080), 25 fps (1280 x 720)
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Network
Network Storage	Supports MicroSD / SDHC / SDXC cards (128 GB), local storage and NAS (NFS,SMB / CIFS), ANR
Alarm Triggers	Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, QoS, IPv6
API	ONVIF (PROFILE S, PROFILE G), ISAPI
General Functionalities	One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Interface
Communication Interface	1 x RJ45 10/100 Mbps self-adaptive Ethernet port
On-board Storage	Built-in MicroSD / SDHC / SDXC slot, up to 128 GB
Alarm interface	1 x Input: Alarm in (3.5 mm), 1 x Output: Alarm out (3.5 mm)
General
Operating Conditions	-22° to 140° F (-30° to 60° C), humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, PoE (802.3 af, class 3)
Power Consumption	12 V DC, 0.7 A, max. 8.5 W, Φ 5.5 mm coaxial plug power PoE (802.3 af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W
Protections	IK08, IP66
Dimensions	Φ 4.3 x 2.2" (Φ110 x 56.4 mm)
Weight	Camera: Approx. 0.9 lb (400 g)
