Platinum HD-TVI Turret Camera 1.3MP Previous Platinum HD-TVI Turret Camera 1.3MP

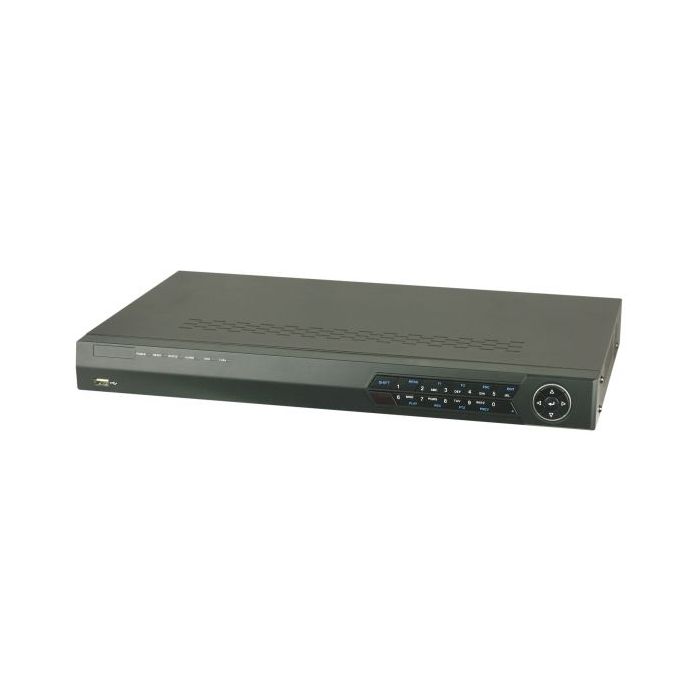

main product photo

LTN7616-P8

Be the first to review this product
Call for Price
Out of stock
SKU
LTN7616-P8
Out of Stock
Show more Show less
Wish List Compare
  • Third-party network cameras supported
  • Up to 5 Megapixels resolution recording
  • HDMI and VGA output at up to 1920×1080P
  • HDD quota and group management
  • 8 independent network interfaces for built-in switch
More Information
Specifications
Video / Audio input
IP video input 16-ch
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)
Incoming bandwidth 80Mbps
Video / Audio output
Decoding resolution 5MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
HDMI / VGA output 1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 12×80 720 /60Hz, 1024 × 768 /60Hz
Audio output 1-ch, RCA (Linear, 1kΩ)
Playback resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous playback 8-ch
Hard disk
SATA 2 SATA interface for 2 HDDs
Capacity Up to 4TB for each disk
External interface
Network interface 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface
Built-in switch network interface 8 independent 10 /100 Mbps Ethernet interfaces
Serial interface 1 RS-485 half-duplex interface
USB interface 2 × USB 2.0
General
Power supply 100 ~ 240 VAC, 47 ~ 63 Hz, 3A
Power Consumption ≤ 15 W (without hard disk)
Working temperature -10 °C ~ +55 °C(14°F~131°F)
Working humidity 10% ~ 90%
Chassis 19-inch rack-mounted 1U chassis
Dimension  445 × 290 × 45mm (17.5”× 11.4” × 1.8”)
Weight ≤ 2 Kg ( 4.4Lbs,without hard disk)
SKU LTN7616-P8
Recorder Technology Hybrid NVR
Recorder Case 1U Case
Recorder Series Platinum Series
Recorder Channel 16-Channel
Datasheet (868.02 kB)
User Manual (7.78 MB)
Quick Start Guide (2.17 MB)
User Manual (3.29 MB)
