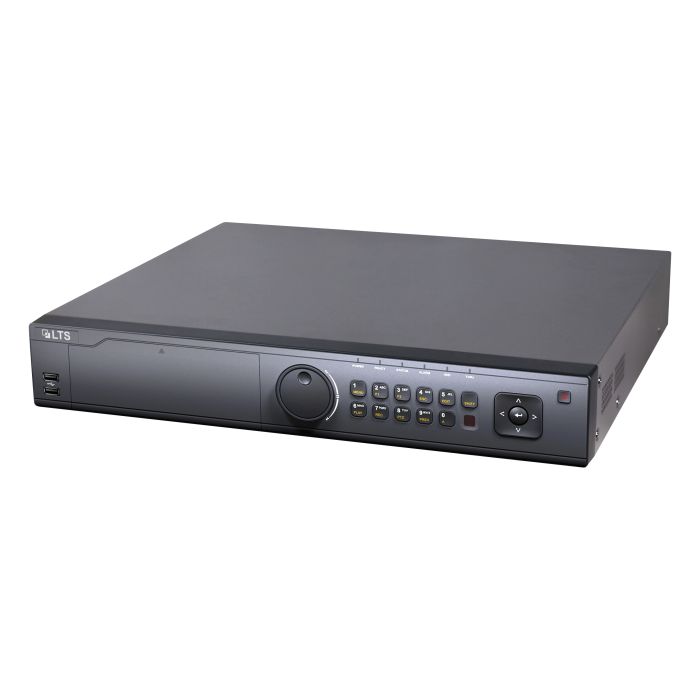

Platinum Professional Level 16 Channel 4K HD-TVI DVR - with RAID

VIDEO/ AUDIO INPUT

Video compression

H.265+/H.265/H.264 Zip+/H.264

Analog video input

16ch

BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection

HDTVI input

8MP,5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

AHD input

5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI input

4MP, 1080p25, 1080p30, 720p25, 720p30

CVBS input

Support

IP video input

2-ch (up to 18-ch), Up to 8 MP resolution, Supports H.265+/H.265/H.264 Zip+/H.264 IP cameras

Network bandwidth

260 Mbps

Audio compression

G.711u

Audio input

4-ch, RCA (2.0 Vp-p, 1 KΩ)

VIDEO/ AUDIO OUTPUT

HDMI1/VGA output

1 -ch , 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz

HDMI2

1-ch, 4K(3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920× 1080/60Hz, 1280 × 1024/60Hz,

1280 × 720/60Hz, 1024 × 768/60 Hz

Encoding resolution

8 MP/5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Frame rate

Main stream: 8 MP@8fps/5MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p@25fps(P)/30fps(N)

Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)

Video bit rate

32 Kbps-10Mbps

Audio output

2-ch, RCA (Linear, 1 kΩ)

Audio bit rate

64 Kbps

Dual- stream

Support

Stream type

Video, Video & Audio

Synchronous playback

16ch

NETWORK

Remote connections

128

Network protocols

TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, IP Portal, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNM

HARD DISK/DISK ARRAY

SATA

4 SATA

eSATA

Support

Capacity

Up to 10TB capacity for each disk

Array type

RAID0, RAID1, RAID5, RAID6, RAID10

EXTERNAL INTERFACE

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)

Network interface

2, RJ45 10M/100M/1000Mself-adaptive Ethernet interface

Serial interface

RS-232, RS-485 (full-duplex), Keyboard

USB port

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm in/ out

16/4

GENERAL

Power supply

AC 100 to 240 V

Consumtion

≤ 65W

Working temperature

-10 °C ~ +55 °C(14°F - 131°F)

Working humidity

10% ~ 90%

Dimensions (WxDxH)

445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)

Weight

≤5Kg (11 lb)
