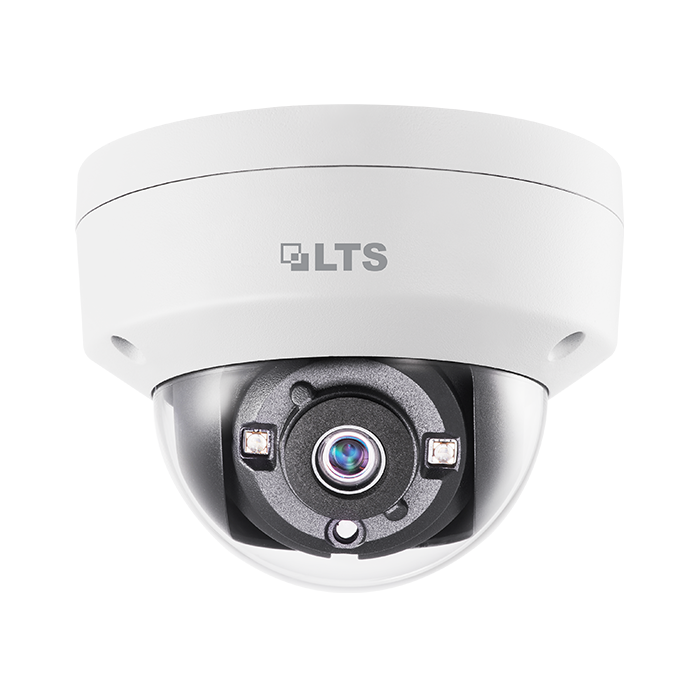

Platinum Dome HD-TVI Camera 2.1MP - 2.8mm

Details

3yr  ovnif  ul listed
  • High Definition Dome 2.1MP HD-TVI Camera
  • 2.8mm Fixed Lens
  • 1920x1080@30fps
  • 0.005 Lux@F2.0
  • True WDR 120dB
  • IP67
  • 2 Matrix IR 2.0 LED up to 65ft
  • IK7 Vandal-Proof Dome
  • 3-Axis Easy Installation
  • UTC Control to OSD Menu
  • Smart IR, DC 12V

Videos

Details

Specifications

Camera Series Platinum Series
Camera Resolution 2.1MP / 1080P
Camera Technology HD-TVI
Camera Housing Dome
Featured Product No
Specifications

Camera

Image Sensor

2.0 megapixel progressive scan CMOS

Signal System

PAL/NTSC

Frame Rate

PAL: 1080p@25fps

NTSC: 1080p@30fps

Resolution

1920 (H) × 1080 (V)

Min. illumination

Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Slow Shutter

Max.: 16 times

Lens

2.8 mm, 3.6 mm fixed focal lens

Horizontal Field of View

103.5° (2.8 mm), 82.6° (3.6 mm)

Lens Mount

M12

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°

Synchronization

Internal synchronization

WDR (Wide Dynamic Range)

> 120 dB

Menu

AGC

Support

Day/Night Mode

Auto/Color/BW (Black and White)

White Balance

ATW/MANUAL

Privacy Mask

ON/OFF, 4 programmable privacy masks

Motion Detection

4 programmable motion areas

Backlight Compensation

WDR/BLC/OFF

3D DNR (Digital Noise Reduction)

Level 1 to 10

Language

English

Functions

Brightness, Sharpness, Mirror, Smart IR

Interface

Video Output

1 HD analog output

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ±25%

Power Consumption

Max. 3.2 W

Protection Level

IP67, IK10

Material

Metal

IR Range

Up to 66ft(20 m)

Communication

Up the coax, TVI output

Dimensions

Φ 111 mm × 82.4 mm (Φ 4.4" × 3.2")

Weight

Approx. 350 g (0.77 lb.)

Downloads

Spec Sheet
