Platinum Dome HD-TVI Camera 2.1MP - 2.8mm Previous Platinum Dome HD-TVI Camera 2.1MP - 2.8mm

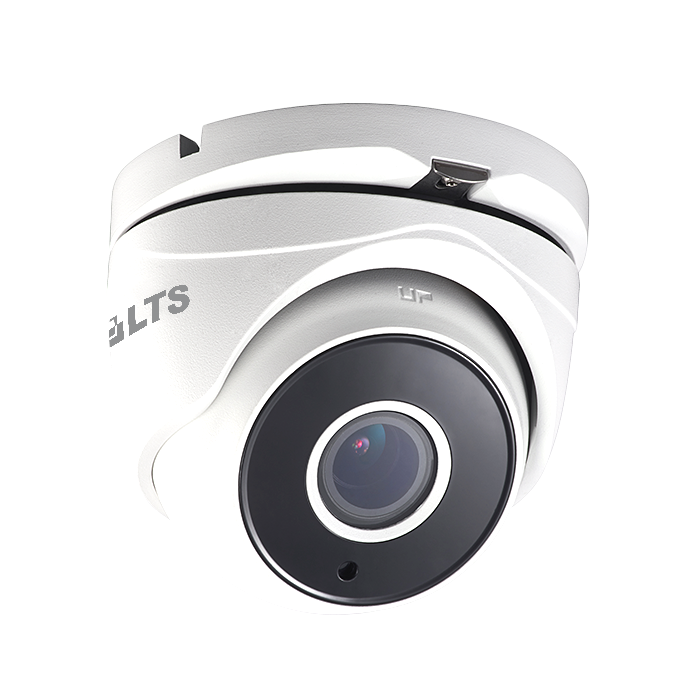

Platinum Starlight HD-TVI Turret Camera, 2.1MP

Call for Price
Out of stock
SKU
CMHT1923WE-Z
Out of Stock
3yr  ovnif
  • High Definition Turret 2.1MP HD-TVI Camera
  • 2.8-12mm Varifocal Motorized Lens with Auto Focus
  • 1920x1080@30fps
  • 0.005 Lux@F1.8
  • True WDR 120dB
  • IP67
  • 2 Matrix IR 2.0 LED up to 131ft
  • UTC Control to OSD Menu
  • Smart IR, DC 12V
More Information
Specifications
CAMERA
Image Sensor 1/3" CMOS
Signal System NTSC/PAL
Effective Pixels 1920(H)*1080(V)
Min. Illumination 0.005 Lux , 0 Lux with IR
Lens 2.8-12mm Motorized Varifocal Lens; FoV: 103°~32.1°
Shutter Speed 1/30 (1/25) to 1/50,000 s
Day & Night ICR
Synchronization Internal
Video Frame Rate 1920x1536@18fps
HD Video Output 1 HD-TVI Output
S/N Ratio More than 62dB
MENU
AGC Support
D/N Mode Color/ BW/Auto
White Balance ATW/ MWB
BLC Support
Function Brightness,Sharpness,Defective Pixel Correction,Mirro r , Smart IR
GENERAL
Working Temperature
/Humidity
-40 °F ~ 140 °F (-40 °C ~ 60 °C)
Humidity 90% or less (non-condensing)
Power Supply DC 12V
Power Consumption Max. 8W
Weather Proof Ratings IP67
IR Range Up to 131ft (40m)
Dimensions 5.3" x 4.9" x 4.4" (134.3 x 123.9 x 111.4mm)
Weight 1.6 lb (750g)
Video
SKU CMHT1923WE-Z
Camera Technology HD-TVI
Camera Series Platinum Series
Camera Housing Turret
Camera Resolution 2.1MP / 1080P
