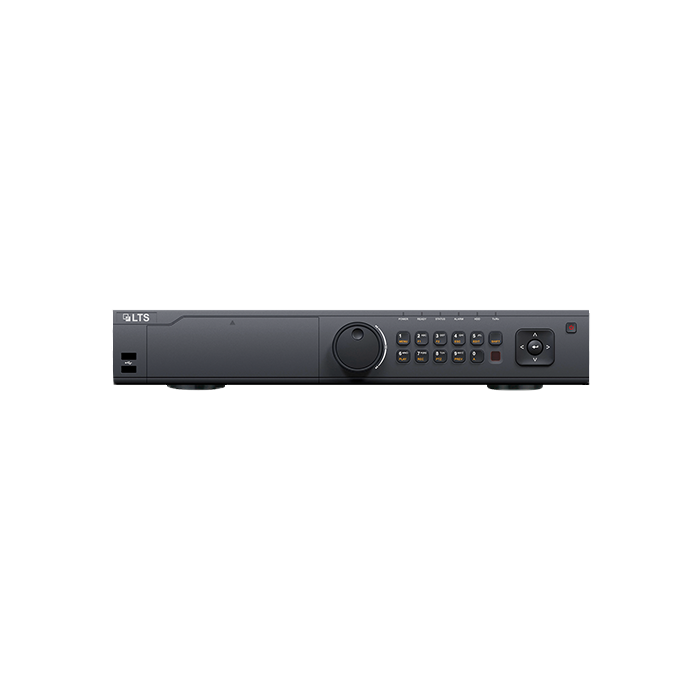

Platinum Enterprise Level 16 Channel 4K NVR 1.5U

Rating:
60 % of 100
2  Reviews Add Your Review
Call for Price
Out of stock
SKU
LTN8916
Out of Stock
Show more Show less
Wish List Compare
  • 16 Channel Network Video Recorder
  • Support Live View, Storage, Playback up to 12MP IP Camera
  • Quad-core CPU
  • 160MB Bandwidth
  • 4K (3840x2160) HDMI Video Output
  • 4 SATA up to 6TB each HDD
  • H.264/H.264 Zip+/H.265 Ready
  • 1CH CVBS
More Information
Specifications
Video/Audio Input
IP Video Input 16-CH, Up to 12MP Resolution
Two-Way Audio Input 1-CH, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 256Mbps
Remote Connection 128
Video/Audio Output
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output 1-ch, resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Output 1-CH, RCA (Linear, 1kΩ)
Decoding
Live View/ Playback Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 16-CH
Capability 4-ch @ 4K, or 16-ch @1080p
Hard Disk
SATA 4 SATA Interfaces for 4 HDDs
Capacity Up to 6TB for Each Disk
External Interface
Network Interface 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Serial Interface 1 RS-485 (Half-Duplex), 1 RS-232
USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out 16/4
General
Power Supply 100~240V AC
Consumption ≤20W
Working Temperature +14ºF ~ +131 ºF(-10ºC ~ +55ºC)
Working Humidity 10% - 90%
Casing 19-Inch Rack-Mounted 1.5U Casing
Dimension 17.5"× 15.3" × 2.8"(445 × 390 ×70 mm)
Weight ≤11lb (5Kg)
Video
SKU LTN8916
Recorder Technology IP / NVR
Recorder Case 1.5U Case
Recorder Series Platinum Series
Recorder Channel 16-Channel
Spec Sheet (3.72 MB)
Quick Start Guide (1.70 MB)
(5)usermanualofnetworkvideorecorder_v4.1.50_20190111 (5.13 MB)
User Manual (4.28 MB)
