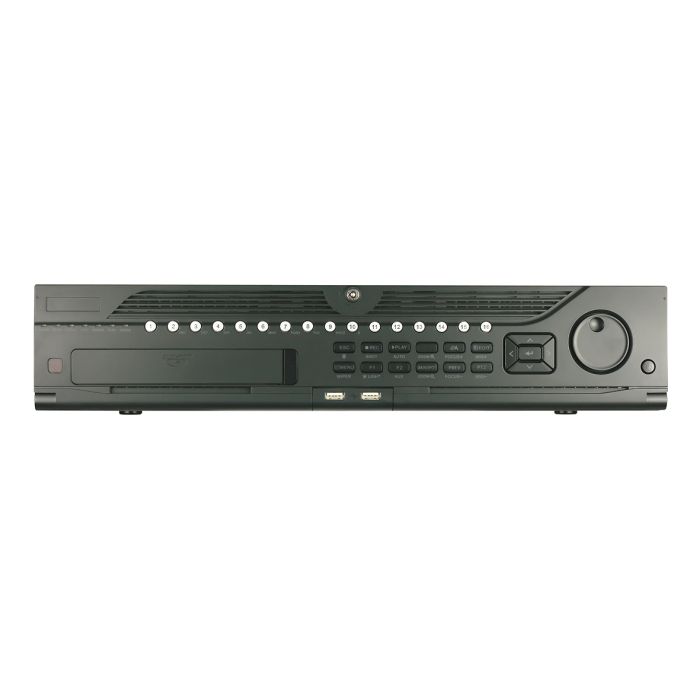

Platinum Professional Level 32-Channel 4K NVR - RAID

Be the first to review this product
Call for Price
Out of stock
SKU
LTN8932-R
Out of Stock
Show more Show less
Wish List Compare
  • Connects up to 32 IP Cameras
  • Supports Live View, Storage, Playback up to 12 MP (3072 x 2048)
  • HDMI Video Output up to 4K
  • 8 x SATA up to 6 TB each
  • Supports HDD Quota and Group Modes
More Information
Specifications
Audio / Video Input
IP Video Input 32 Channels, Up to 12 MP Resolution
Two-Way Audio Input 1 Channel, RCA (2.0 Vp-p, 1 kΩ)
Networking
Incoming Bandwidth 320 Mbps or 200 Mbps (with RAID enabled)
Outgoing Bandwidth 256 Mbps or 200 Mbps (with RAID enabled)
Remote Connections 128
Audio / Video Output
Recording Resolutions 3, 4, 5, 6, 8, 12 MP; 1080p; UXGA; 720p; VGA; 4CIF / DCIF / 2CIF / QCIF
VGA 1 / HDMI 1 Output 4K (3840 × 2160) / 60 Hz, 4K (3840 × 2160) / 30 Hz, 1920 × 1080p / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
VGA 2 / HDMI 2 Output 2K (2560 × 1440) / 60 Hz, 1920 × 1080p / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Audio Output 2 ch, RCA (2.0Vp-p,1kΩ)
Decoding
Decoding Format H.264 / H.265 / MPEG4
Synchronous Playback 16 Channels
Capability 4 ch @ 4K, or 16 ch @ 1080p
Hard Drives
SATA 8 x SATA interfaces for 8 x HDDs
eSATA 1 x eSATA interface
Capacity Up to 8 TB for Each HDD
External Interface
Serial Interface RS-232; RS-485; Keyboard
Alarm Channels In/Out 16/4
General
Power Supply 100 ~ 240V AC, 50 - 60 Hz
Consumption ≤30W
Operating Temperature 14º to 131º F(-10º to 55º C)
Operating Humidity 10% - 90%
Housing 19-Inch Rack-Mounted 2U Casing
Dimensions 17.5 × 18.5 × 3.5" (445 × 470 × 90 mm)
Weight ≤ 22 lbs (10 kg)
Video
SKU LTN8932-R
Recorder Technology IP / NVR
Recorder Case 1.5U Case
Recorder Series Platinum Series
Recorder Channel 32-Channel
LTN8932-R User Manual (5.13 MB)
LTN8932-R Spec Sheet (1.26 MB)
LTN89XX-R Series Quick Start Guide (1.22 MB)
LTN89XX-R Series User Manual (7.04 MB)
