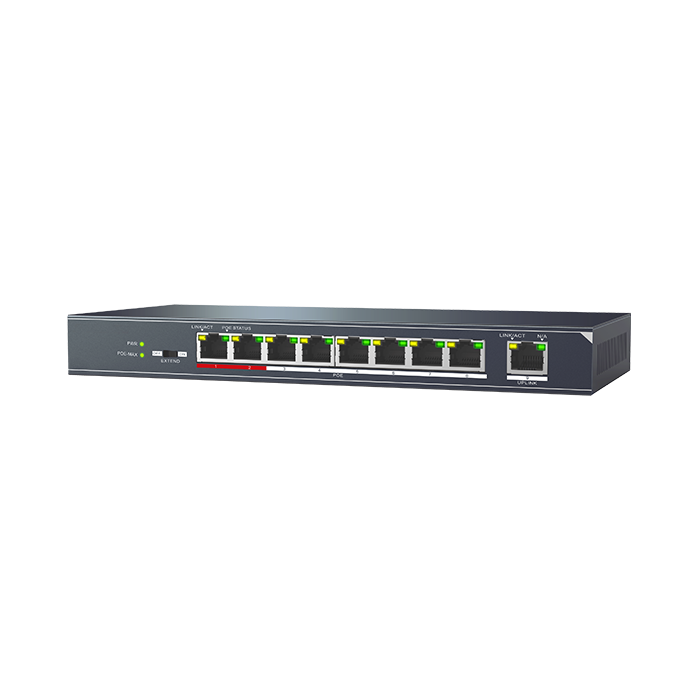

8-Ports 100Mbps Unmanaged PoE Switch

Be the first to review this product

Call for Price

In stock

SKU

LTPOE-SW801

Out of Stock

PoE transmit power and data, distance up to 820ft, 8 PoE ports + 1 uplink

IEEE 802.3at and IEEE 802.3af PoE compliant
Distance up to 820ft
Extend mode up to 820ft
8 PoE Ports + 1 Uplink
Provides up to 30 watts per PoE port
Supports PoE power up to 123W for all PoE ports
4x kV surge Protection for PoE ports
1.8 Gbps Switching Fabric
1.25 Mbits RAM Data Buffer
4K MAC address entries
Metal Enclosure
Plug-and-Play Installation

Show more Show less

IEEE 802.3at and IEEE 802.3af PoE compliant
Distance up to 820ft
Extend mode up to 820ft
8 PoE Ports + 1 Uplink
Provides up to 30 watts per PoE port
Supports PoE power up to 123W for all PoE ports
4x kV surge Protection for PoE ports
1.8 Gbps Switching Fabric
1.25 Mbits RAM Data Buffer
4K MAC address entries
Metal Enclosure
Plug-and-Play Installation

More Information

Specifications

Ports
Network Ports	9
Standard
Network Protocol	IEEE80 2.3,8 02.3u,802.3 x, 802.3af, 802.3at
Performance
Switching Capacity	1.8Gbps
Uplink Port	100M Ethernet Port, 1
Max. Forwarding Rate	1.34Mpps
High Priority Ports	Ports 1-2
Forwarding Mode	Store-and-forward
MAC Address Table	4k
Flow Control	IEEE802.3x full duple x
Power Over Ethernet
PoE Port	8
PoE Standard	802.3af, 802.3at
PoE Power Budget	123W
Working Mode	Supports 8 pins powering
General
Power Supply	51V DC, 2A
Power Consumption	≤127 W
Working Temperature	32°F ~ 104°F(0℃- 40℃)
Working Humidity	10 % ~ 90 %
Surge Protection	4KV
Dimensions	235 × 103 ×27 mm(9.25" ×3.67"×1.06")
Weight	≤ 0.57kg(1.254Ib)

SKU

LTPOE-SW801
