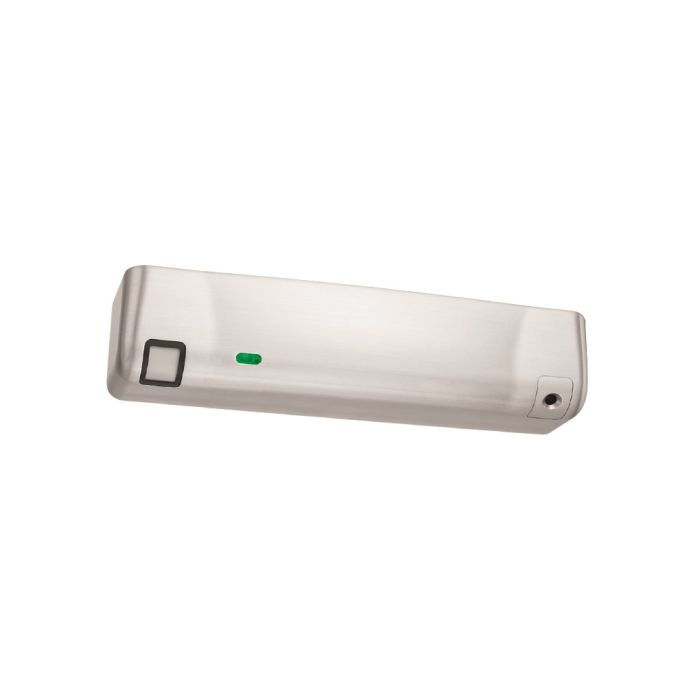

Securitron M380BDX MAGLOCK

Out of stock

SKU

LTK-M380BDX

Out of Stock

600lb with REX Bond Sensor DPS 12/24 VDC

600lb with REX, Bond Sensor, DPS, 12/24 VDC

Show more Show less

600lb with REX, Bond Sensor, DPS, 12/24 VDC

More Information
Specifications	Product Features Bracket mounting provides the easiest install for out-swing doors Innovative install template for an effortlessly accurate alignment between magnet and armature plate Sleek, low profile and refined lines for improved aesthetics LED visual locked status with configurable red/green color output BondSTAT lock bond sensor - Patented Integrated door position switch Autosensing dual voltage with microprocessor technology Adjustable automatic relock timer (0.5 - 15 seconds) Wire chamber with anti-tamper switch Efficient, low power usage Size optimized for use with door closers MagnaCare® lifetime replacement, no fault warranty Product Options Integrated passive infrared (PIR) motion detector request to exit (REX) Integrated video surveillance camera in color or black/white for lower light Mounting for glass door applications Specifications Holding Force: 600lbs [272kg] Dimensions: Magnalock: 10"L x 2-7/16"D x 2-3/16"H Strike: 7-7/16"L x 5/8"D x 1-5/8"H Operating Temperature: +32 to +110F [0 to +43C] Indoor use only Shipping Weight: 8lbs [3.6kg] Finishes: US28/628 - Satin Aluminum (Standard) US19/335 - Satin Black US03/605 - Polished Brass US04/606 - Satin Brass US10/612 - Satin Bronze US20A/313 - Satin Brown
SKU	LTK-M380BDX
