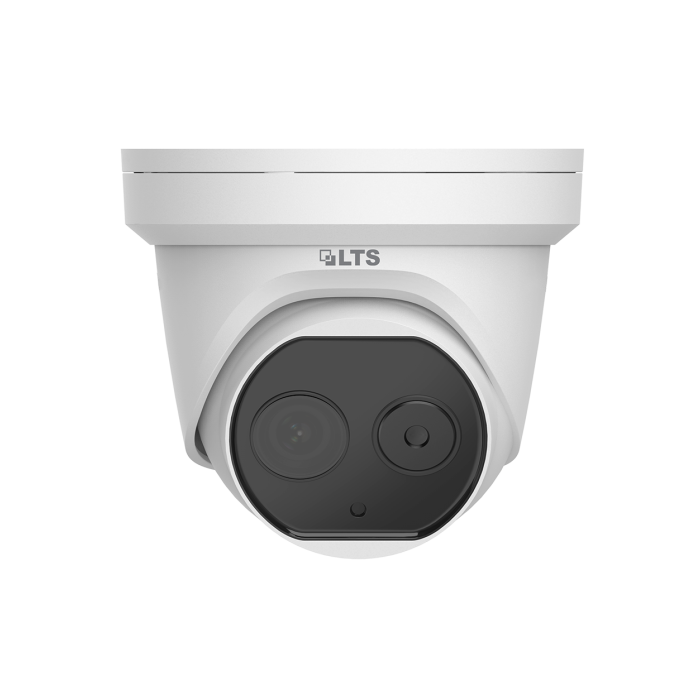

| Specifications |
|
Thermal Module
|
|
Image Sensor
|
Vanadium oxide uncooled focal plane arrays
|
|
Max. Resolution
|
160 × 120 (output image resolution: 320 × 240)
|
|
Pixel Interval
|
17 μm
|
|
Response Waveband
|
8 to 14 μm
|
|
NETD
|
Less than 40 mK (25°C), f 1.1
|
|
Focal Length
|
1.8 mm
|
|
MRAD
|
9.44
|
|
Field of View
|
90° × 66.4° (H × V)
|
|
Min. Focusing Distance
|
0.1 m
|
|
Aperture
|
f 1.1
|
|
Optical Module
|
|
Max. Image Resolution
|
1920 × 1080
|
|
Image Sensor
|
1/2.7” Progressive Scan CMOS
|
|
Min. Illumination
|
Color: 0.002 Lux @ (f1.2, AGC on), B&W: 0.0002 Lux @ (f1.2, AGC on)
|
|
Shutter Speed
|
1 to 1/100,000 sec.
|
|
Lens (Focal Length)
|
2.1 mm
|
|
Field of View
|
101.2° × 77° (H × V)
|
|
Wide Dynamic Range (WDR)
|
120 dB
|
|
Day & Night
|
IR cut filter with auto switch
|
|
Image Function
|
|
Bi-spectrum Image Fusion
|
Fusion of thermal view and overlaid details of the optical channel
|
|
Picture in Picture
|
Combines details of thermal and optical images with PIP, overlays thermal imaging on optical
|
|
Smart Functions
|
|
Video Content Analysis (VCA)
|
4 VCA rules: Line crossing, intrusion, region entrance, and region exit; up to 8 VCA rules
|
|
Temperature Measurement
|
3 temperature measurement rules, 21 rules (10 points, 10 areas, and 1 line).
|
|
Temperature Range
|
-4° to 302° F (-20° to 150° C)
|
|
Temperature Accuracy
|
± 14.4° F (± 8 °C)
|
|
Fire Detection
|
Dynamic fire point detection, up to 10 fire points detectable.
|
|
Infrared
|
|
IR Distance
|
Up to 50 ft (15 m)
|
|
IR Intensity and Angle
|
Automatically adjusted
|
|
Network
|
|
Main Stream
|
Visible Light: 50 Hz: 25 fps (1920 × 1080), 25 fps (1280 × 960), 25 fps (1280 × 720)
Visible Light: 60 Hz: 30 fps (1920 × 1080), 30 fps (1280 × 960), 30 fps (1280 × 720)
Thermal: 25 fps (160 × 120 [output image resolution: 320 × 240])
|
|
Sub Stream
|
Visible Light: 50 Hz: 25 fps (704 × 576), 25 fps (640 × 480)
Visible Light: 60 Hz: 30 fps (704 × 480), 30 fps (640 × 480)
Thermal: 25 fps (160 × 120 (output image resolution: 320 × 240))
|
|
Video Compression
|
H.264 / H.264+ , H.265 / H.265+ encoding with Baseline / Main / High Profile
|
|
Audio Compression
|
G .711 u / G.711 a / G.722.1 / MP2L2 / G.726 / PCM
|
|
Protocols
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
|
|
Simultaneous Live View
|
Up to 20
|
|
User / Host level
|
Up to 32 users, 3 levels: Administrator, Operator, User
|
|
Security Measures
|
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x, access control, IP address filtering
|
|
Integration
|
|
Alarm Input Channels
|
1 input (0 - 5 VDC)
|
|
Alarm Output Channels
|
1 relay output; alarm response actions configurable
|
|
Alarm Action
|
SD recording / Relay output / Smart capture / FTP upload / Email linkage
|
|
Audio Input
|
1 x 3.5 mm Mic in / Line in interface; Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
|
|
Audio Output
|
Linear Level; Impedance: 600 Ω
|
|
Reset
|
1 x Reset Button
|
|
Ethernet
|
1 x RJ45 10/100 Mbps Self-adaptive Ethernet interface, 1 x RS-485 interface
|
|
SD Memory Card
|
Built-in card slot supports MicroSD / SDHC / SDXC cards up to 256 GB, supports manual / alarm-triggered recording
|
|
Analog Video Output
|
1.0 V [p-p] / 75 Ω, PAL / NTSC / BNC
|
|
Application Programming
|
Open-ended API; supports ISAPI, SDK and third-party management platforms
|
|
Web Browsers
|
IE 9+, Chrome 31 - 44, Firefox 30 - 51, Safari 5.02+ (Mac)
|
|
General
|
|
Menu Languages
|
English
|
|
Power
|
12 VDC± 20%, two-core terminal block
PoE (802.3af, class 3)
|
|
Power Consumption
|
12 VDC ± 20%: 0.7 A, max. 8 W
PoE (802.3 af, class 3): 42.5 to 57 V, 0.14 to 0.22 A, max. 8.5 W
|
|
Operating Conditions
|
-22° to 140° F (-30° to 60° C), 95% or less
|
|
Protection Levels
|
IP67 Standard
TVS 6,000 V lightning protection, surge protection, voltage transient protection
|
|
Dimensions
|
5.45 × 5.45 × 4.85" (138.3 × 138.3 × 123.1 mm)
|
|
Weight
|
1.98 lb (900 g)
|
Detection Range Table
*The table is for reference only; performance may vary from camera to camera based on environmental and other factors.
Smart Function Range
Specific targets trigger the VCA events in unique range limits.
|
VCA Range
(Vehicles: 1.4 x 4.0 m)
|
VCA Range
(Humans: 1.8 x 0.5 m)
|
Temperature Measurement
(Objects: 2 × 2 m)
|
Temperature measurement
(Objects: 1 × 1 m)
|
Fire Detection
(Objects: 2 × 2 m)
|
Fire Detection
(Objects: 1 × 1 m)
|
|
135 ft (42 m)
|
45 ft (14 m)
|
145 ft (44 m)
|
70 ft (22 m)
|
350 ft (108 m)
|
175 ft (54 m)
|
Wide Range Coverage
There is range limit for detecting, recognizing, and identifying human and vehicle targets.
|
Detection Range
(Vehicles:
1.4 × 4.0 m)
|
Detection Range
(Humans:
1.8 × 0.5 m)
|
Recognition Range
(Vehicles: 1.4 × 4.0 m)
|
Recognition Range
(Humans: 1.8 × 0.5 m)
|
Identification Range
(Vehicles: 1.4 × 4.0 m)
|
Identification Range
Humans: 1.8 × 0.5 m)
|
|
540 ft (162 m)
|
175 ft (53 m)
|
135 ft (41 m)
|
40 ft (13 m)
|
65 ft (20 m)
|
20 ft (7 m)
|
|
