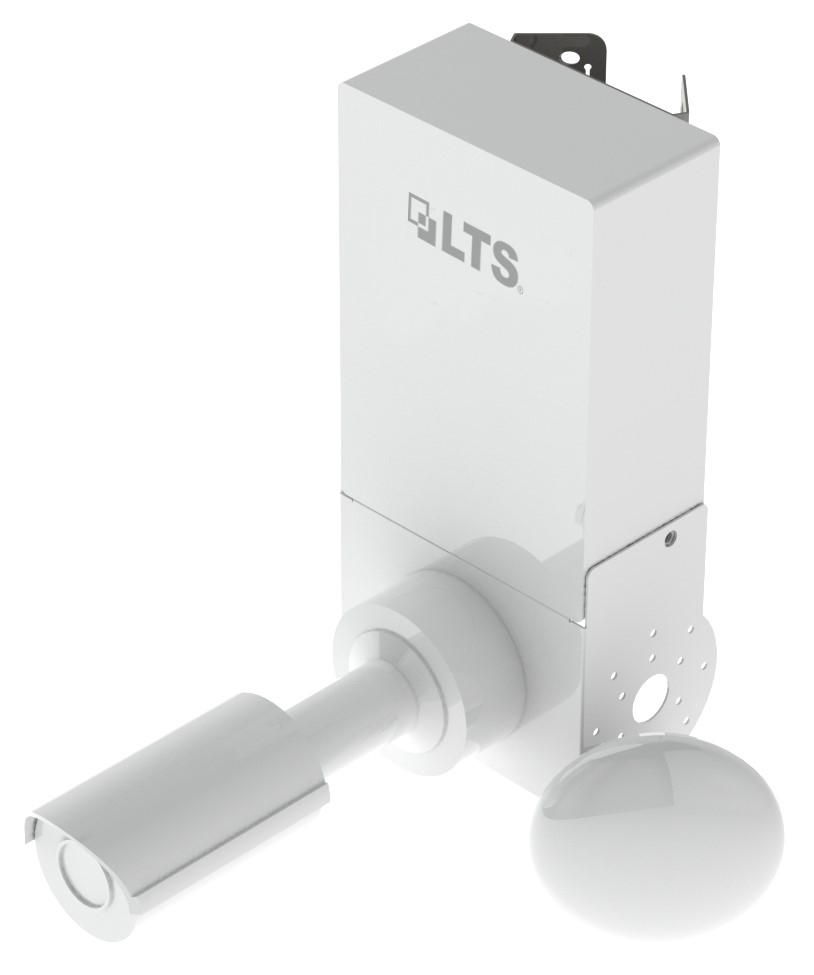

Wireless Video Station



wireless video station

Feature

  • Plug-n-play Installation
  • Built-in Industrial Grade 4 Ports POE+ Switch
  • Built-in Wireless Network Transmitting System for Delivering High Definition Video Streams up to 9 Miles
  • 8MP/20MP 4K Resolution IP Camera with True WDR and Motorized Lens
  • Built-in Smart Control Node for Powering on/off Cameras and Wireless Network System
  • Take 110-277VAC as Power Input
  • Built-in Pole Mount Bracket, Pre-drilled Mounting Holes For Cameras
  • Monitor the Power Quality and Energy Consumption in Real-time
  • IP66 Rated, Weather-proof
  • 10K Surge Protection
  • Standard 3-year Warranty

LEARN MORE

Available Products

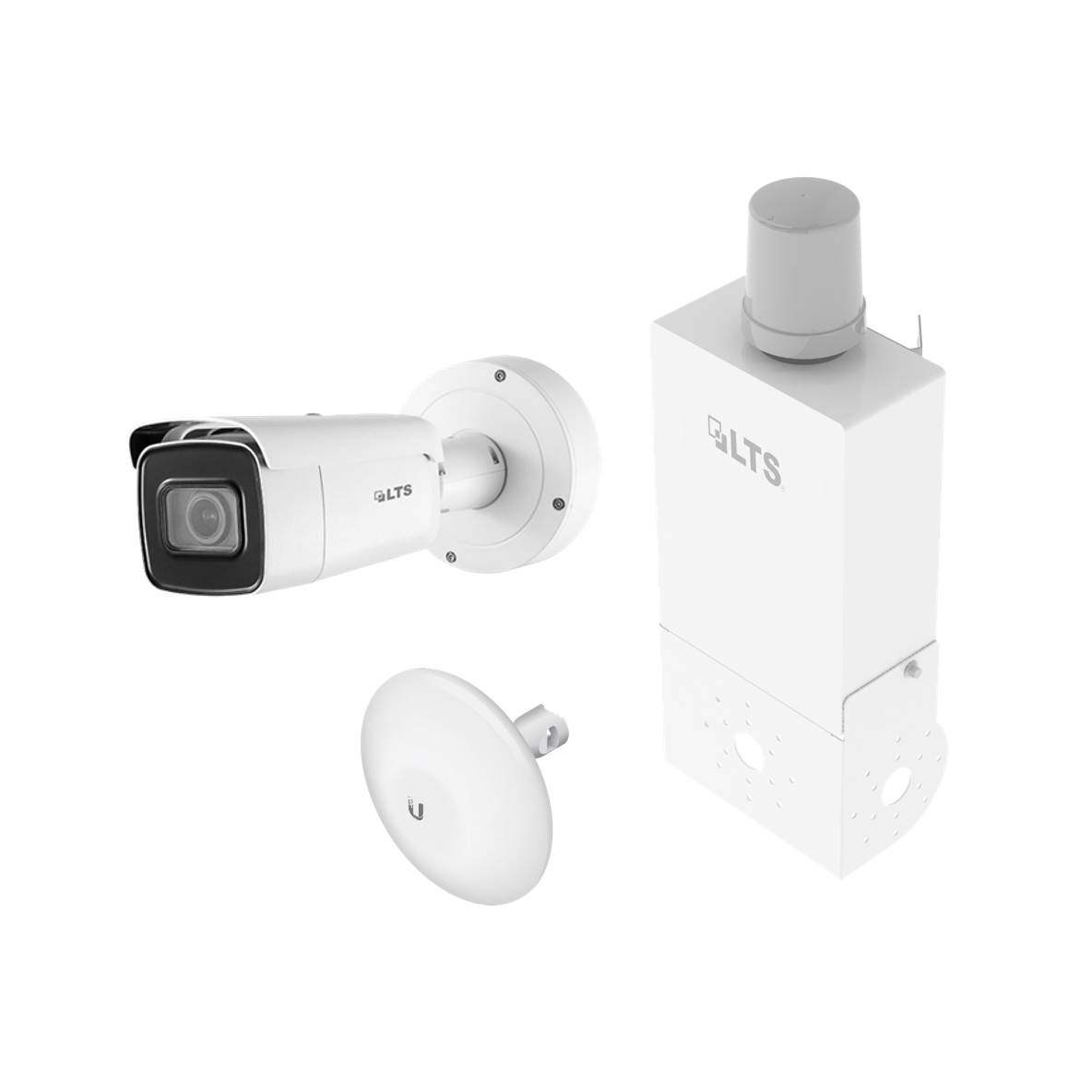

with 4K Vari-focal Bullet IP Camera

LTVS-KB883

LEARN MORE

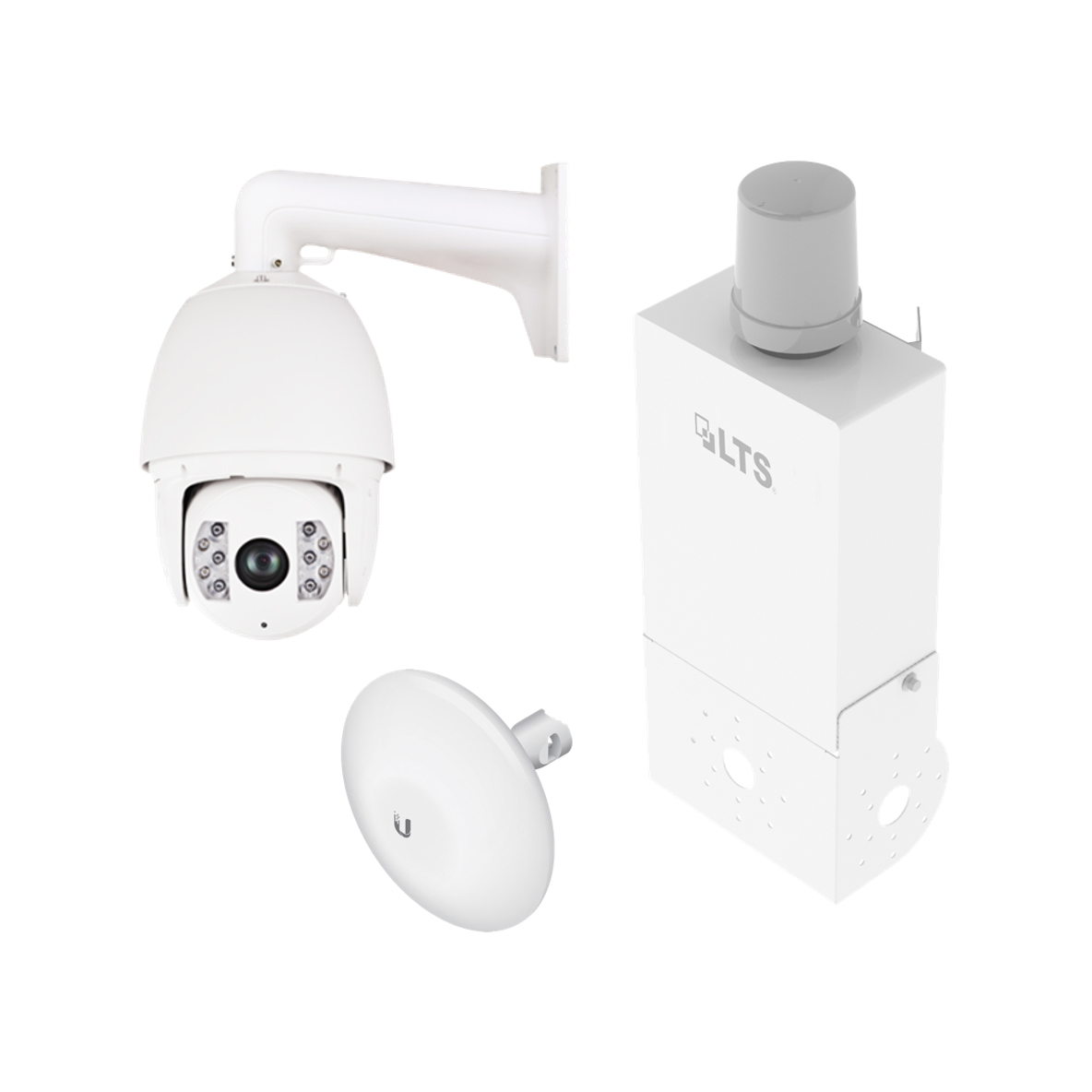

with 2MP Smart Tracking IP PTZ Camera

LTVS-KP772

LEARN MORE

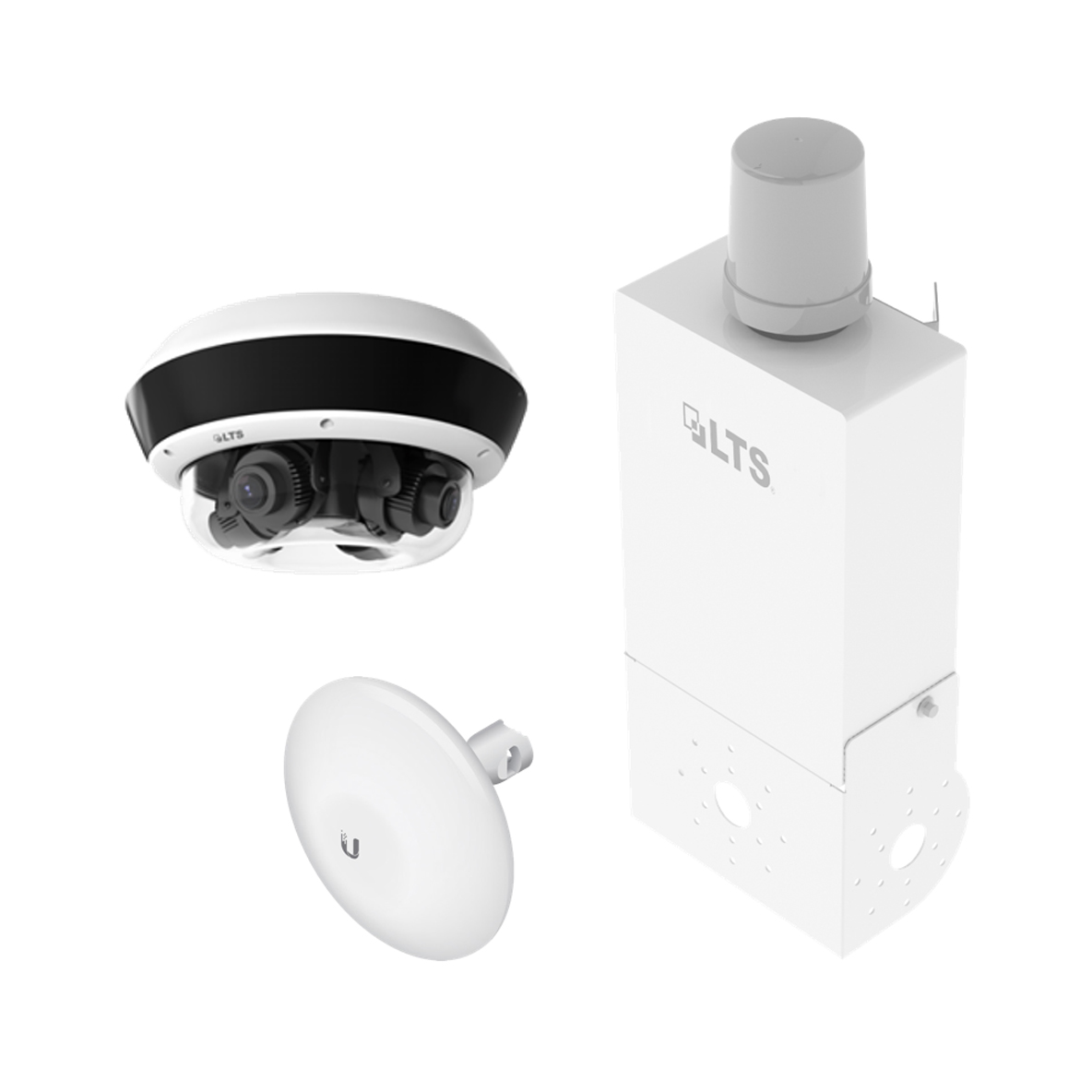

with 20MP Multi-lens Vari-focal IP Camera

LTVS-KM553

LEARN MORE

Application

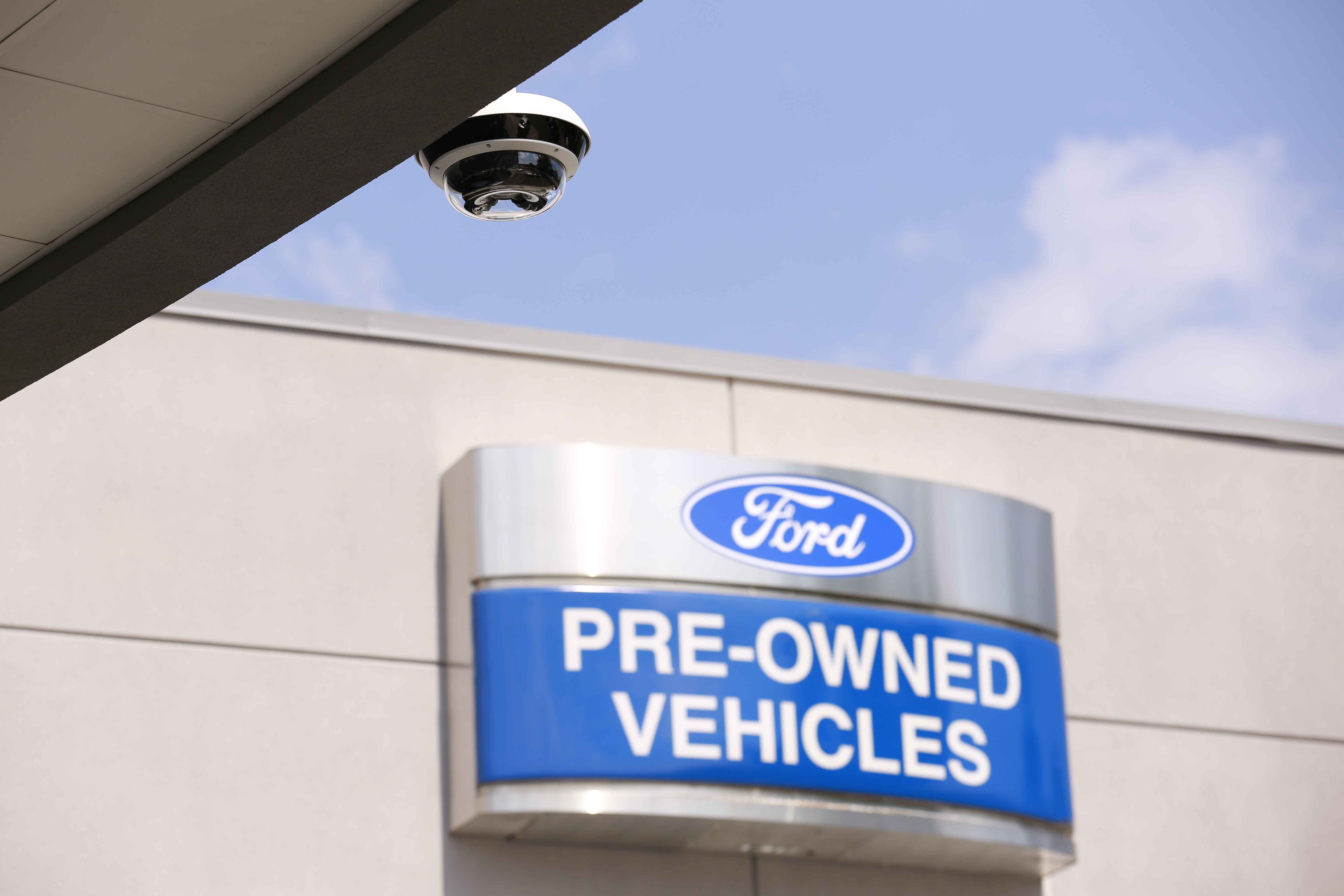

Car Dealership

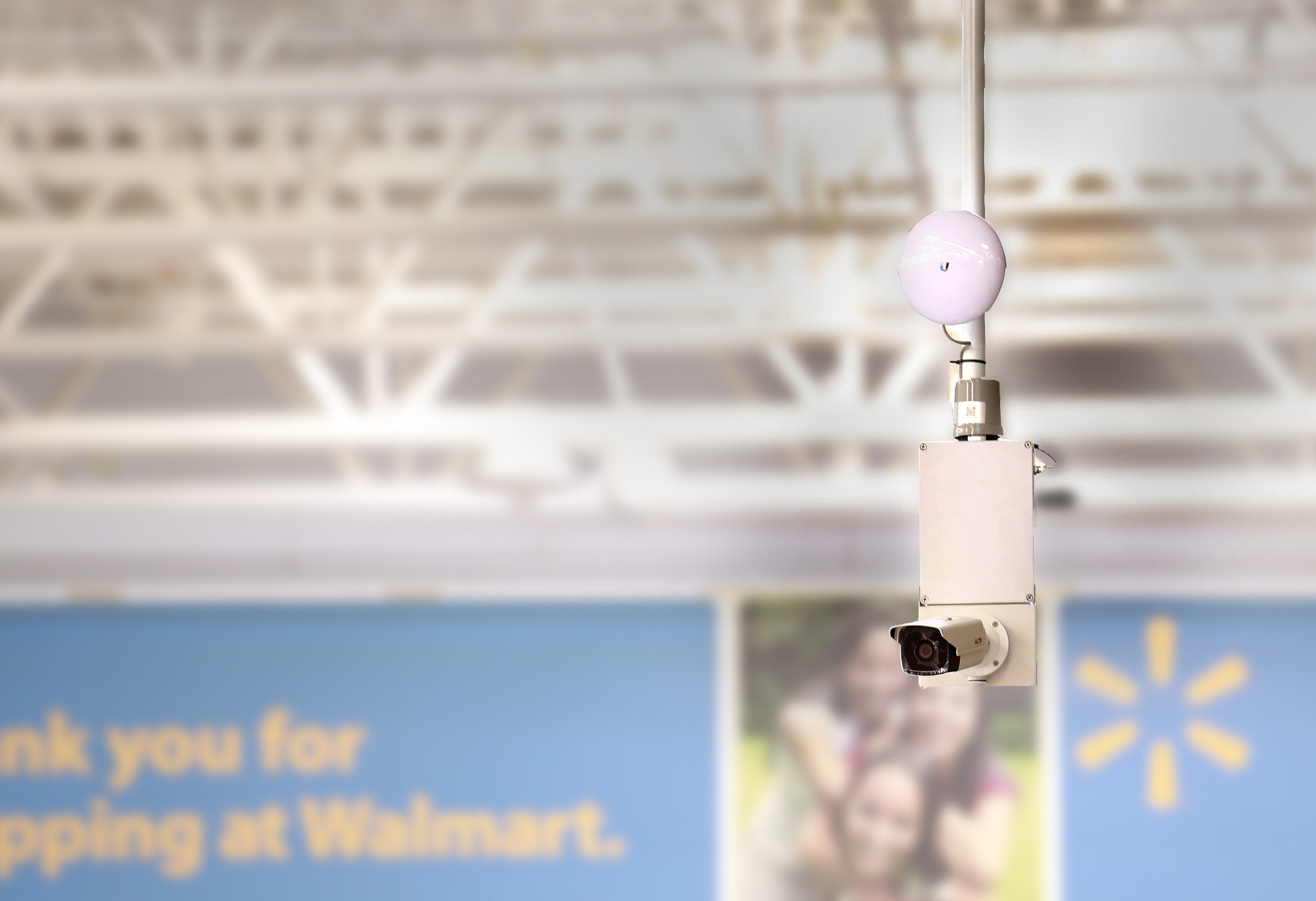

Department Store

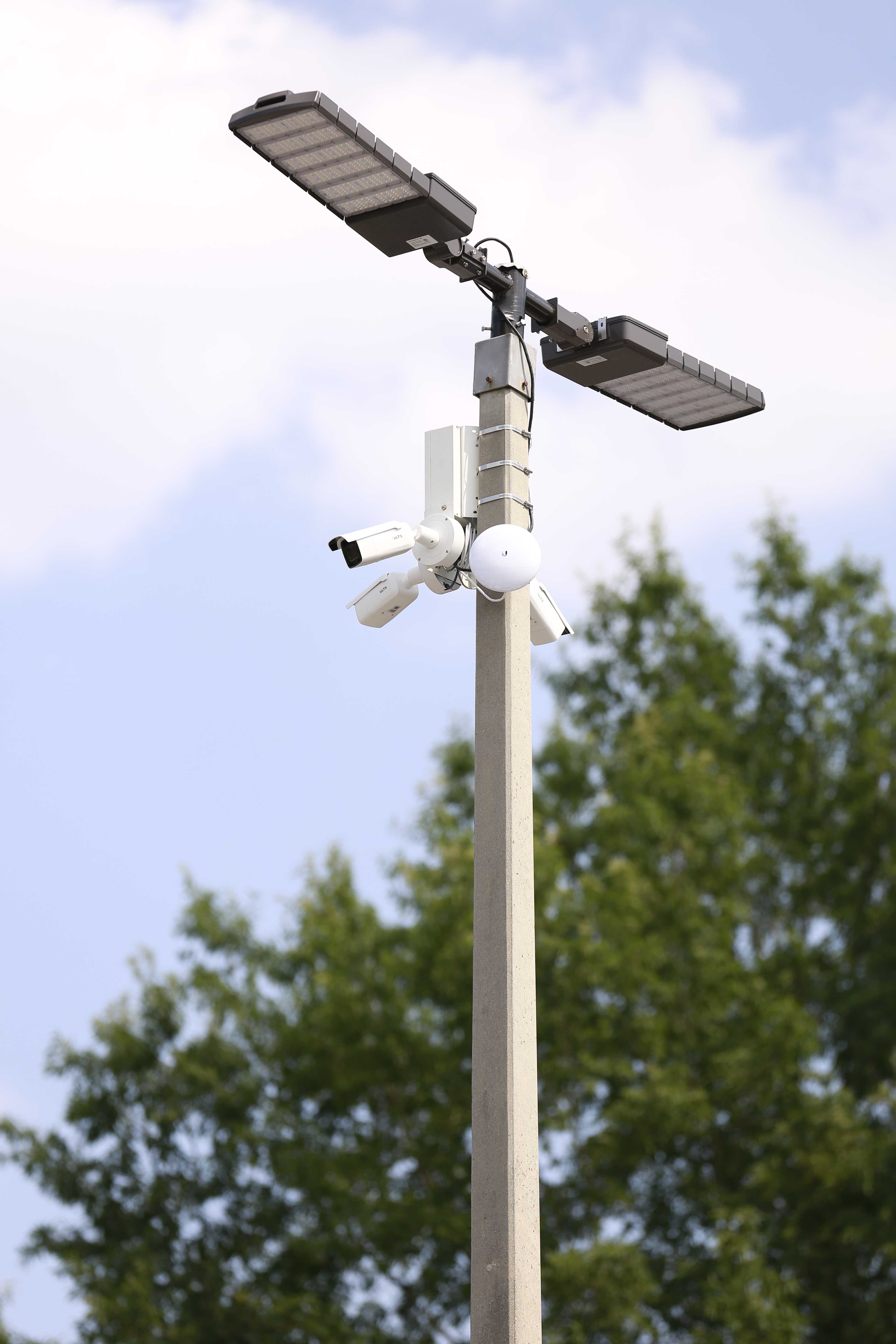

Parking Lot

Warehouse

LEARN MORE

Specifications

Electrical

  • Operating Voltage: 120-277VAC
  • Max. Power Consumption: 30W max
  • Operating Current: 350mA max
  • Surge Protection: Meets ANSI, 10KV, 3KA Combination Wave

Environmental

  • Operating Temperature: -40 to 70°C (-40 to 158°F)
  • Storage Temperature: -40 to 85°C (-40 to 185°F)
  • Humidity Range: < 95% Relative Humidity, Non-condensing
  • Wind Survivability: 125 mph
  • Weather Proof Rating: IP66

Physical

  • Dimensions (H x W x D): 20 x 7.8 x 4.6 inches
  • Color: White
  • Weight: 10 lbs
  • Wind Survivability: 125 mph
  • Material: Metal

Wireless Network

  • Operating Frequency: 5150 - 5250 MHz
  • Video Transmission Range: up to 9 miles
  • Comply with FCC Part 15
  • Channels: 5/8/10/20/30/40 MHz
  • Video Transmit Antenna Gain: 19dBi

Surveillance IP Camera

  • 8MP/20MP 4K Ultra HD
  • True WDR 120dB
  • Vari-focal Motorized Lens
  • IR LEDs for Night Vision
  • H.265/H.265+ Advanced Video Compression
  • IP67 Waterproof
  • 802.3af/at PoE/PoE+
