Platinum Advanced Level 16 Channel HD-TVI DVR - Efficient Mode Previous Platinum Advanced Level 16 Channel HD-TVI DVR - Efficient Mode

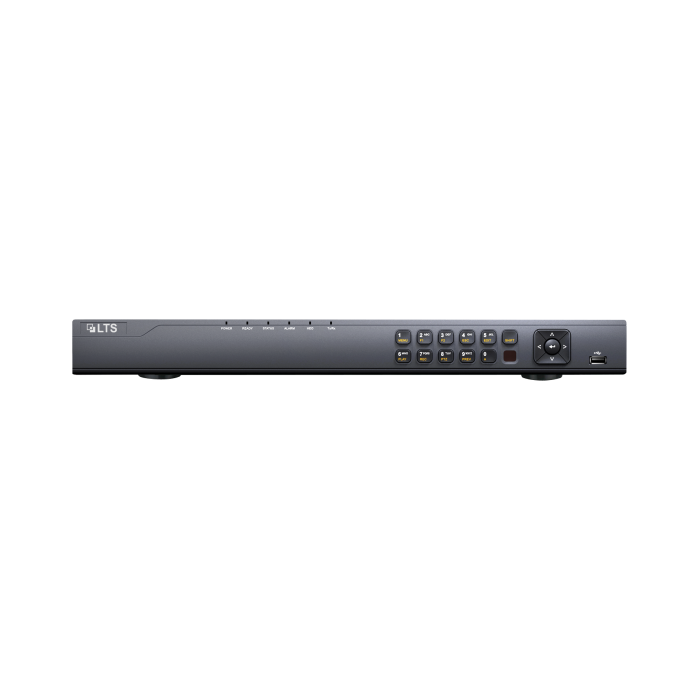

main product photo

Platinum Professional Level 16 Channel HD-TVI DVR

Be the first to review this product
Call for Price
Out of stock
SKU
LTD8516T-ST(U)
Out of Stock
Show more Show less
Wish List Compare
  • 16CH DVR 1U
  • Support TVI / AHD/ ANALOG / CVI / IP input  (5 in 1), support up to 3MP HD-TVI input
  • Support Live View, Storage, Playback up to 16 TVI / Analog Cameras + 2 IP Cameras up to 4MP
  • Up to 4K (3840X2160) HDMI Video Output
  • CVBS Output
  • 2 SATA up to 12TB each HDD
  • H.264 / H.264 Zip+
  • 2 USB 2.0
  • Alarm I/O: 16/4, Audio I/O: 4/1
  • Enhanced VCA Mode
More Information
Specifications
VIDEO/AUDIO INPUT
Video Compression H.264 Zip+ / H.264
Video Input

16ch

BNC (1.0 Vp-p, 75 Ω), supporting coaxitron connection
IP Input  up to 2CH (Support ONVIF, up to 4MP)
Audio Compression  G.711u
Audio Input  4CH, RCA (2.0 Vp-p, 1 kΩ)
Two-Way Audio Input  1CH, RCA (2.0 Vp-p, 1 kΩ)
VIDEO/AUDIO OUTUPUT
HDMI/VGA Output

VGA: 1 -c h , 192 0 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz

HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution 3MP@15fps/1080p@30fps/720p@30fps/WD1/4CIF/VGA/CIF
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Frame Rate

Main stream: 3 MP@15fps;1080p/720p/WD1/4CIF/VGA/CIF@25fp s(P)/30fps(N)

Sub-stream:WD1/4CIF@12fps,CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video Bit Rate 32 Kbps-10 M bps
Audio Output 1-ch, RCA (Linear, 1 kΩ)
Audio Bit Rate 64 Kbps
Dual Stream Support
Stream Type Video, Video & Audio
Synchronous Playback 16CH
NETWORK
Remote Connections 128
Network Protocols TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SAD P, NFS, iSCSI, UPnP™, HTTPS, ONVIF
HARD DISK
SATA 2 SATA
Capacity Up to 8TB capacity for each disk
EXTERNAL INTERFACE
Network interface 1: RJ4510M / 100M/ 1000M self-adaptive Ethernet interface
Serial interface RS-485
USB Port Front panel: 1× USB 2.0 , Rear panel: 1×USB 3.0
Alarm In/Out 16/4
GENERAL
Power supply DC 12V
Consumption ≤ 25W
Working temperature -10 °C ~ +55 °C(14°F - 131°F)
Working humidity 10% ~ 90%
Chassis 1U chassis
Dimensions (WxDxH) 440 × 290 × 45 mm (17.3 × 11.4 × 1.8 inch)
Weight ≤2Kg (4. 4lb)
Video
SKU LTD8516T-ST(U)
Recorder Technology TVI DVR
Recorder Case 1U Case
Recorder Series Platinum Series
Recorder Channel 16-Channel
Specification (2.01 MB)
Specification (3.33 MB)
